Audiowell to Showcase Ultrasonic Smart Flow Measurement Products & Solutions at MICONEX 2025
Release Time：2025-08-07 Reads：23
From August 13th to 15th, 2025, the highly anticipated 33rd China International Measurement Control and Instrumentation Exhibition (MICONEX) will be grandly held at the Hunan International Convention
Smart Gas Meter Application Series
Gas Flow Transducer
The Gas Flow Transducer is the core component of ultrasonic gas meters. This ultrasonic sensor for gas media utilizes new acoustic matching materials to enhance ultrasonic signal transmission capability in gas. Primarily used for natural gas and coal gas metering.
- High sensitivity.
- Excellent directivity.
- Corrosion-resistant materials suitable for various gases.
Gas Flow Sensor
The Gas Flow Sensor consists of the Gas Flow Transducer and housing. Its conveniently installable housing, formed by upper and lower covers, incorporates ultrasonic sensors using new acoustic matching materials to improve signal transmission in gas. Primarily used for natural gas and coal gas metering.
- Combined structure for easy installation.
- Stable and reliable quality.
- Excellent consistency.
Intelligent General-purpose Liquid Flow Measurement Series
Ultrasonic Flow Sensor Model
This pipe-section ultrasonic flow sensor Model outputs direct digital flow signals. It integrates a pair of master-slave connected ultrasonic flow sensors and a measuring pipe section, along with circuitry for processing time-difference signals of ultrasonic propagation. It outputs digital information such as instantaneous flow, total flow, and water flow status via serial interface.
- High measurement accuracy with no moving parts.
- Micro-leak detection for intelligent alerts.
- Flexible expansion, multiple applications.
- Supports liquid and semi-fluid flow measurement.

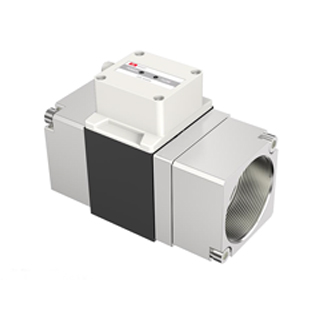

Vortex Flow SensorThe Vortex Flow Sensor measures liquid or gas flow, especially suited for large flow, high velocity, and high-viscosity coolant scenarios. Based on the Kármán vortex street principle, it accurately detects vortex frequency generated as fluid passes a bluff body. Combined with fluid dynamics models and signal processing, it enables stable, real-time flow measurement.
- Excellent resistance to bubble and impurity interference.
- Modular structure with low pressure loss.
- Instantaneous flow accuracy ±3% F.S.
- Optional temperature sensor for simultaneous flow/temperature detection.

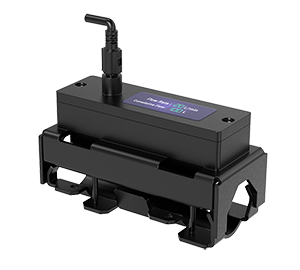

Clamp-on Flow Sensor
This clamp-on, non-contact flow measurement device features two ultrasonic sensors continuously transmitting ultrasound towards the pipe center and receiving echoes. By measuring ultrasonic propagation time within the pipe section, it calculates the velocity and flow rate of the liquid inside.
- Non-contact high-precision measurement via external clamping.
- Compatible with rigid metal pipes and flexible plastic pipes.
- Suitable for various fluids like water, ethanol, and chemical solutions.
Intelligent Gas Flow Measurement Series

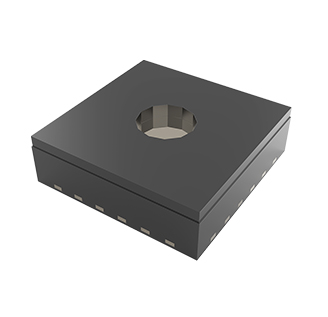

MEMS Ultrasonic Gas Flow Measurement integrates the physical principle of sound velocity difference with Micro-Electro-Mechanical Systems (MEMS) technology. It achieves reliable metering through high-precision Time-of-Flight (TOF) algorithms and dynamic composition compensation. Its core advantages are low power consumption, long lifespan, and anti-aging, making it ideal for smart metering and Industrial IoT, ushering gas flow measurement into the digital era.
- Enables high-precision detection of small flows.
- High integration, compact size, meeting meter miniaturization trends.
- Mature process, excellent consistency in mass production.
