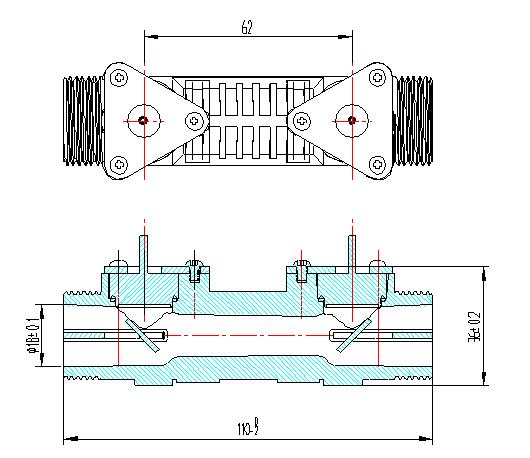

The Ultrasonic Flow Sensor with Plastic Pipe measures the flow rate of the water flowing through it by transmitting and receiving ultrasonic pulses. It is comprised of a pair of ultrasonic flow sensors and a DN15 polymer pipe.
Buy Samples
Features:
1. Low pressure loss
2. Anti-deformation material
3. High-temperature resistance
4. High accuracy and consistency
DN 15
NO.
Item
Specification
1
Resonant impedance
≤110Ω
2
Resonant frequency
975±30KHz
3
Static capacitance
1150±20%pF
4
Ultimate Pressure
1.6Mpa
